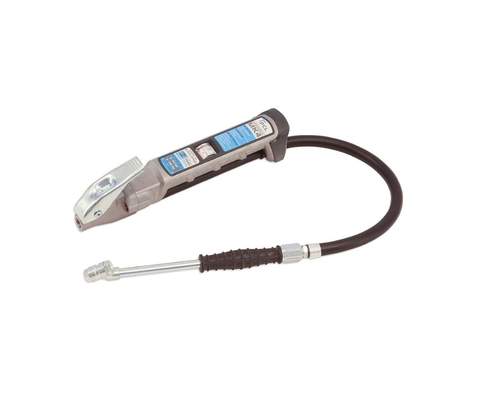

PCL MK4 Tyre Inflator with 0.53m Hose & Twin Connector | AFG4H03

High Performance Linear Tyre Inflator with 0.53m Hose

When it comes to linear gauges, the AIRFORCE® MK4 from PCL is THE market leader. Giving 10x more cycles than it’s closest competitor, the Airforce MK4 tyre inflator is able to out-perform other linear gauges due to it’s two-stage valve design.

How is a two-stage valve design different to competitors?

Similar inflators use a single stage mechanism in which filters are used to try and protect the product. As a result, this can reduce the product life by 50% and slows down inflation rates. Indeed, the loss of inflation also decreases productivity time for the technician. The two-stage valve design of  the Airforce MK4 gives a high performance every time, with great accuracy and longer life.

PCL MK4: Robust & Easy to Handle

One of the most popular features about the AIRFORCE® MK4 is the ease-of-use. Firstly, the screen display is 20% larger and allows much clearer reading. Secondly, the lighter weight makes it a better inflator for competitive use. Having said that, the light weight doesn’t mean it isn’t sturdy, the die cast aluminium ergonomic design is less prone to damage when dropped.

The PCL MK4 AIRFORCE® Inflator with Twin Clip-on Connector is also available with 1.8m hose and 2.7m hose. You can view our full range of Airforce MK4 Tyre Inflators Here.

Key Features & Benefits of the PCL MK4 Tyre Inflator

• New Viewing Window – Larger window gives 20% greater field of viewing
• Lighter Weight – Gauge body weighs 923g, less work strain and easier for repetitive use
• Biomorphic Shape – Ergonomic, easier to use and less prone to damage when dropped
• New Valve Mechanism – Simplified 2 stage mechanism design prevents user having to “push” against full line pressure on deflate preventing fatigue
• Improved Piston & Seal Design – New design, less drag, reduced friction & less movement inertia means no internal corrosion, no sticking and no skewing of accuracy
• Accuracy Standards – Tested to over 400,000 cycles at 100% accuracy, compliant with BS EN 12645:2014

Specification

• 0.53m (21″) hose fitted with PCL Twin Hold-On connector
• Calibration: 0-138 psi / 0-9.6 bar
• Reading Accuracy: 2 psi / 0.1 bar
• Maximum Inlet Pressure: 200 psi / 13.8 bar
• Flow Rate: 500 l/min @ 13 bar supply
• Temperature Range:-10°C to 60°C
• Model: AFG4H03
