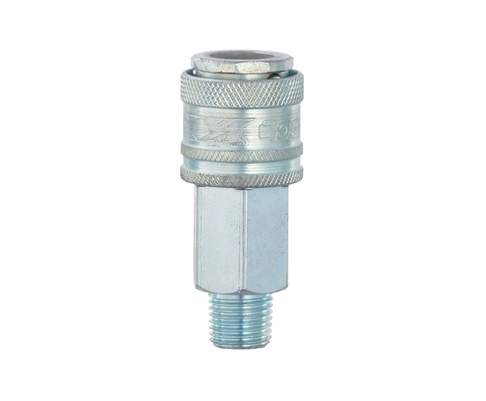

PCL KF Nitto Male BSPT Couplings

PCL KF Nitto Male BSPT Couplings, Asian profile, are specifically designed for portable air tools and industrial pneumatic applications where high flow and reliability are essential.

Key Product Features & Benefits

• Asian Standard Profile
• Compatible with KF range
• Nominal bore: 7.6mm
• Flow rate @ 6 bar (0.5 bar p.d.): 2,100 l/min
• Maximum working pressure:  35 bar / 508 psi
• Temperature range: -40°C to 100°C
• Interchangeability: Nitto Kohki 200, Daisen 20/23SF/23SOF, CEJN 315/315 eSafe, Rectus 13, Prevost OSG/ORG 08, Ludecke ESK, JWL 539, Hansen CHS 03 F
